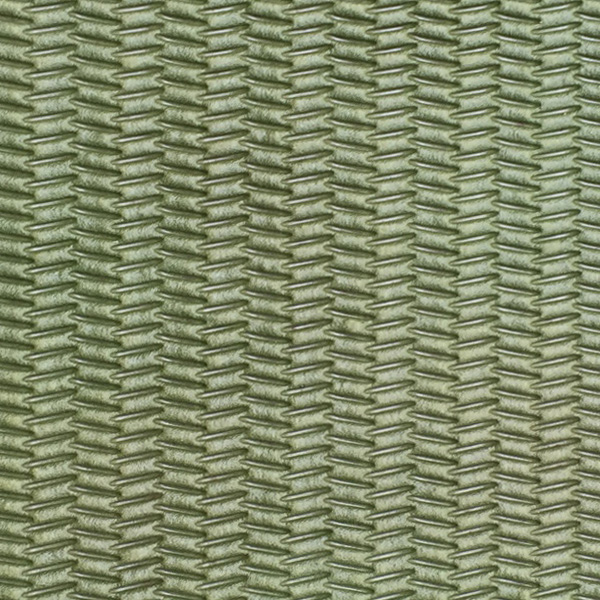

DEFENDER
Highly Recommended for use in Hotel Guest Rooms, Hotel Corridors, Restaurants, Small Function Rooms, Lounges, Gyms, Fitness Rooms, and Offices
Guaranteed for the life of the carpet when used in the above-recommended applications
Passes Highest Flammability Rating of Class 1 (American Standard ASTM-E648-03)
Prolongs the life of carpets
Minimizes carpet rucking
High-Density Sponge Rubber for super durability
Increased underfoot comfort
Roll Size: 1.33 m x 11 m
Roll Area: 15.07 m²
Manufactured In U.K.
| Test Results to BS 5808 : 1991-British Standard for Carpet Underlays | ||||
| Specification | BS Requirements | Result | Method | |
| Material Composition | 100% Sponge Rubber | |||
| Total Weight | Ca. 3017 g/m² (89 oz/yd²) | |||
| Total Thickness | Ca. 6.10 mm (0.24″) | ISO 1765 | ||
| Density | Ca. 495kg/m³ (30.9bs/ft³) | |||
| Roll Area | Ca. 15.07 m² | |||
| Roll Size | 1.33 m x 11.33 m | |||
| End Use Classification | HC/U, Heavy Contract Use | BS 5808:1991 / EN 14499:2015 | ||
| Work of Compression | Min. 50 J/m² Max. 200 J/m² after dynamic loading for 1000 impacts | > 140 J/m² | BS 4908 & BS 4052 & ISO 2094 | |
| Retention of Work of Compression | Min 40% of original after 1000 impacts | > 85 % | BS 4908 & BS 4052 & ISO 2094 | |
| Loss in Thickness after Dynamic Loading | Max. 15% after 1000 impacts | < 3.5 % | BS 4052 & ISO 2094 | |
| Loss in Thickness after Static Loading | Max. 15% after 24 hours recovery | < 4.7 % | ISO 3415 / 3416 & BS 4939 | |
| Resistance to Cracking | not greater than 50mm | Pass | EN 14499 & BS 5808 | |
| Breaking Strength | Min. 30N | EN ISO 13394 BS 2576 | ||
| – Length | > 183N | |||
| – Width | > 126N | |||
| Extension under Force | Max. 15%@ 30N | EN ISO 13394 BS 2576 | ||
| – Length | < 2.2 % | |||
| – Width | < 1 % | |||
| Flammability | Result | Method | ||
| Hot Metal Nut Test | Pass – Low radius of effects of ignition | BS 4790 & BS 5287 | ||
| US Methenamine Pill Test | Pass | DOC-FF 1-70 | ||
| US Smoke Chamber Test | Pass | ASTM E662 | ||
| US Critical radiant flux NFPA | Class I | NFPA 253 / ASTM E648-03 | ||
| Reaction to fire classification (Tested in conjunction with Axminster 1028 carpet) | Cfl-s1 | Tested to EN ISO 9239-1 & 11925-2, rated to EN 13501-1 | ||
| China National FR Test (at China National Test Centre) | Bf1 – s1,t1 | GB/T8628-2007, GB/T11785-2005, GB/T20285-2006 | ||
| Russian GOST FR Test | Classification KM3 | GOST 30244-94, GOST 30402-96, GOST 51032-97, GOST 12.1.044-89(item 4.18), GOST 12.1.044-89(item 4.20) | ||
| Test Performance to US Standards | ||||
| CFD (Compression Force Deflection) | 4.9 PSI @ 25% deflection. Method: 601/12151 | ASTM D3676-13 | ||
| CFD (Compression Force Deflection) | 13.7 PSI @ 50% deflection. Method: 601/12151 | ASTM D3676-13 | ||
| CFD (Compression Force Deflection) | 32.2 PSI @ 65% deflection. Method: 601/12151 | ASTM D3676-13 | ||
| Recommended Use | Extra Heavy Commercial Class III | US Carpet Cushion Council | ||
| Other Properties and Test Performance | ||||
| Odour | No objectionable odour | |||
| Colour / Backing | Green / printed Textron® backing | |||
| Thermal Resistance (European Units) | 0.80 togs | BS 4745 | ||
| – R value (SI Unit) | 0.08 | |||
| – R Value (USA Unit) | 0.45 | |||
| Impact Sound Reduction (ΔLᴡ) | 31 dB | BS EN ISO 10140-3:2010 | ||
| Emissions | Meets Low VOC Emission Criteria (Certified GLP051 Cat CC10 Rubber) | US CRI Green Label Plus Programme | ||
| Antimicrobial and mildew resistant | Pass | ASTM G21 | ||
| GREEN CREDENTIALS | ||||
| Green Features | Description | LEED Programme | ||
| Recyclable | At the end of the underlays useful life, it can be 100% recycled | MR 2.0: Points Available, it can be 100% recycled | ||
| Recycled Content | Contains not less than 3% pre-consumer recycled material | MR 4.0: Points Available, Recycled Content | ||
| Indoor Air Quality | Meets or exceeds the industry standard for indoor air quality as established by the CRI Green Label Programme | IEQ 4.3: Points Available, Product is Green | ||
| Regional Materials | Production Facility Haslingden BB4 4LS, UK. Where used within 500 miles of Production Facility | MR 5.0: Points Available | ||
| Installation | ||||
| Subfloors should be dry, clean and free of oil, grease & damp. STRETCH FIT suitability. Fitting should meet the British Standard code of practice BS 5325 & be undertaken by experianced fitters. | ||||
| Recommended Use Areas | ||||
| Hotel Guest Rooms, Suites, Hotel-Corridor (Medium & Heavy Traffic), Small Function Room, Restaurant, Lounge, Bar, Gym, Fitness Room and Office (Medium & Heavy Traffic). | ||||
 |
||||
| Link to Test Report | Certificate | |||
| 20210817 | ||||
